20mm XPS Premium Insulation Board (5m² Kit)
XPS Premium insulation boards are specifically designed for use with our electric foil underfloor heating systems on concrete & wooden floors.
XPS Premium insulation boards are also used as a high quality insulation for our under-wood foil heating systems, these boards are available in 6mm, 10mm and 20mm thickness.
High compressive strength (30 tonnes / m²), light weight, high efficiency and low cost make this thermal board an ideal choice when fitting heating on to a poorly insulated concrete or screed base.
When using with the under-wood heating aluminium foil system XPS boards can be simply laid onto the surface in a staggered pattern.
*Please note these boards are NOT suitable for use below tiles

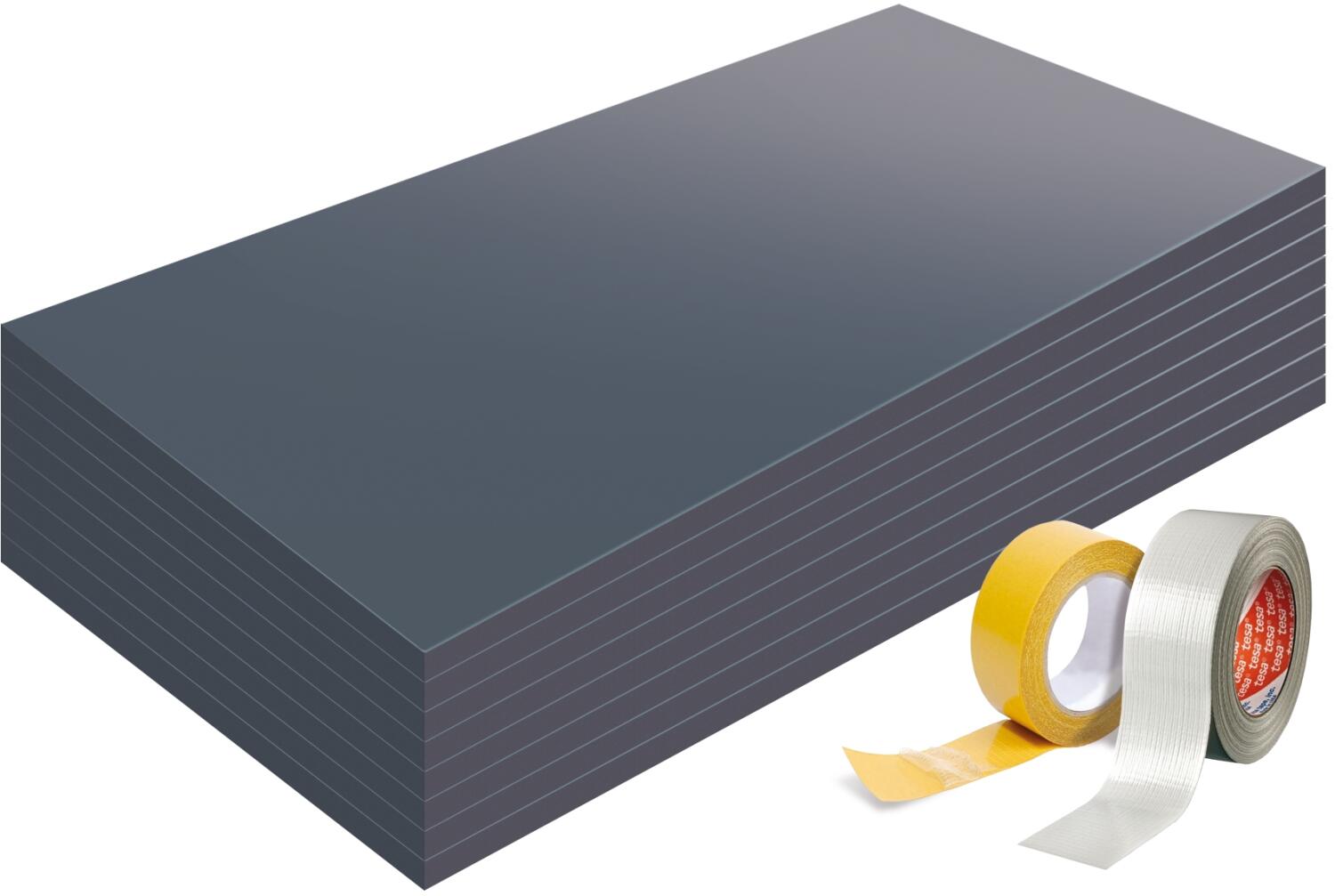

Kit includes:
- XPS boards
- Double sided tape
- Single sided tape
Technical specifications
| Area | 5 m² |
|---|---|
| Board thickness | 20 mm |
| Compressive strength (KPa) | 300 |
| Depth | 20 mm |
| Fire classification | Class E : EN 13501-1 |
| Number of boards | 8 |
| Product type | Insulation Board |
| Service temperature limit | -50°C +75°C |
| Type | XPS Insulation Boards |
