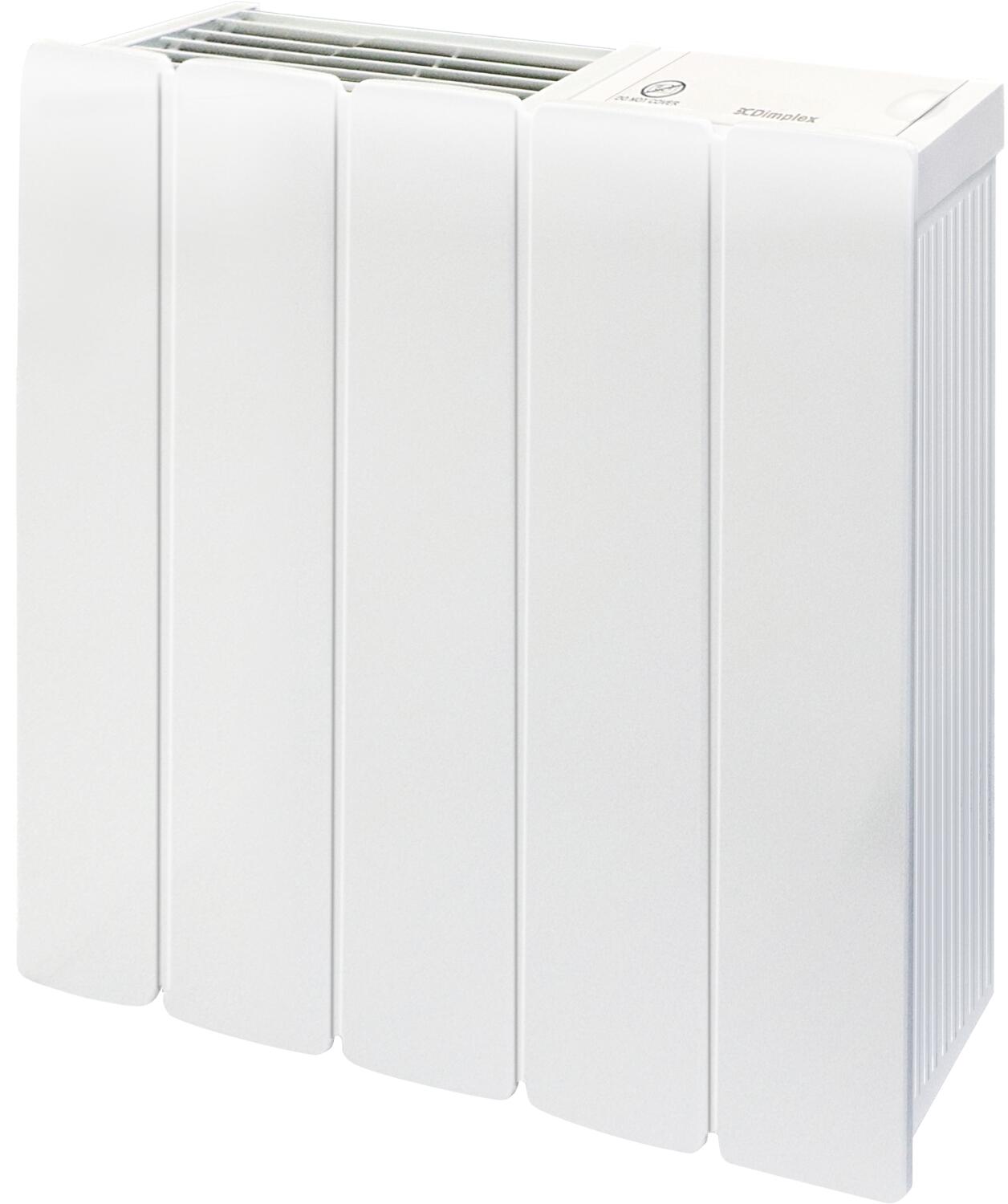

Dimplex Monterey MFP050 500W Electric Panel Heater 503mm

Heats Up To 5 m²*

* All recommended "heats up to" are for example only and are based on current building regulations any deviation within in this build example may significantly affect this recommendation. We always recommend contacting us for a free heat loss calculation.

Quick Find: 13586
Part Number: MFP050

Product Replacement

This product has been superseded by the Dimplex Monterey MFP100 1000W Electric Panel Heater 671mm

Heater Shop
RangeDimplex Monterey
Model500 Watts
BarcodeBarcode 5011139027870
WeightWeight 12.00 Kg

The Monterey combines practical good looks with a stylish finned metal design and highly accurate energy management system for maximum efficiency and comfort. High levels of control are built in with a sophisticated thermostat accurate to an impressive +/- 0.3ºC


Supplied with metal wall bracket.

IP rating

Splash-proof IPX4.

Electrical connections

1.0m, four-core cable (live, neutral, earth, pilot) supplied fitted to each heater. Thermal cut-out Auto-reset type.


Compact, finned, mineral filled sheathed type, providing virtually silent operation.


Durable epoxy-polyester powder coated steel casing, with upward facing grille. Temperature resistant PBT thermoplastic moulded parts

Key Features

  • High levels of control are built in with a sophisticated thermostat, accurate to an impressive +/- 0.3ºC.
  • Range of optional plug-in electronic timer modules: – 24-hour digital timer. – Single-zone pilot wire programmer. – Runback timer
  • Compatible with Dimplex four-zone, wall-mounted pilot wire and mains borne signaling multi-heater programmers
  • Traditional design
  • Virtually noiseless operation
  • Frost protection setting
  • Preset background temperature at 5ºC below thermostat setting*
  • Splash-proof (IPX4) rated, for use in bathroom or wet areas
  • Detachable hinged wall-mounting frame, for fast installation and easy cleaning
  • Suitable for domestic and light commercial use

When connected to a programming unit * supporting setback feature.

  • Thermostat control Electronic type, accurate to +/- 0.3ºC. User selection of room temperature from 5ºC (frost protection) to 30ºC using slider control. Slider can be locked in position if required.
  • Power controls and indicators Soft-touch on/off button, together with indicators showing when power to heater is on and when element is operating.
  • Optional plug-in control modules • 24-hour digital timer (RX24TI). • Runback timer (RXRBTI). • Single-zone, pilot wire programmer (RXPW1).

Central control options† • Four-zone pilot wire and mains borne signaling controllers (RXPW4N and RXMBS4). • RX9913 receivers and RXMBSF filter required for mains borne control operation.

Technical Specifications
Brand Dimplex
Colour White
Depth 104 mm
Dimensions 503 x 536 x 104 mm
Heats Up To 5 m²
Height 536 mm
IP Rating IPX4
Portable No
Product Type Panel Heater
Timer Optional
Warranty 2 Years
Wattage 500 W
Wi-Fi Compatible No
Width 503 mm
