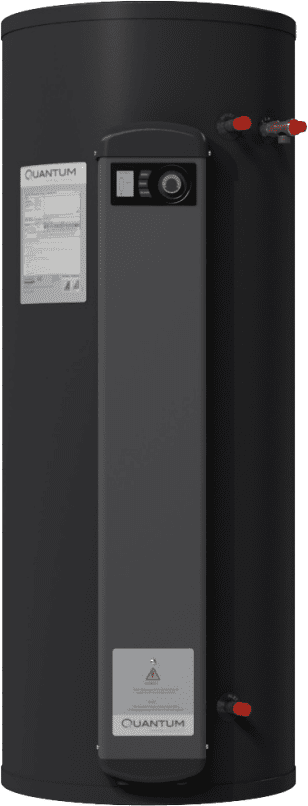

Dimplex QWCd125-580RF Quantum Direct Unvented Water Cylinder 125L

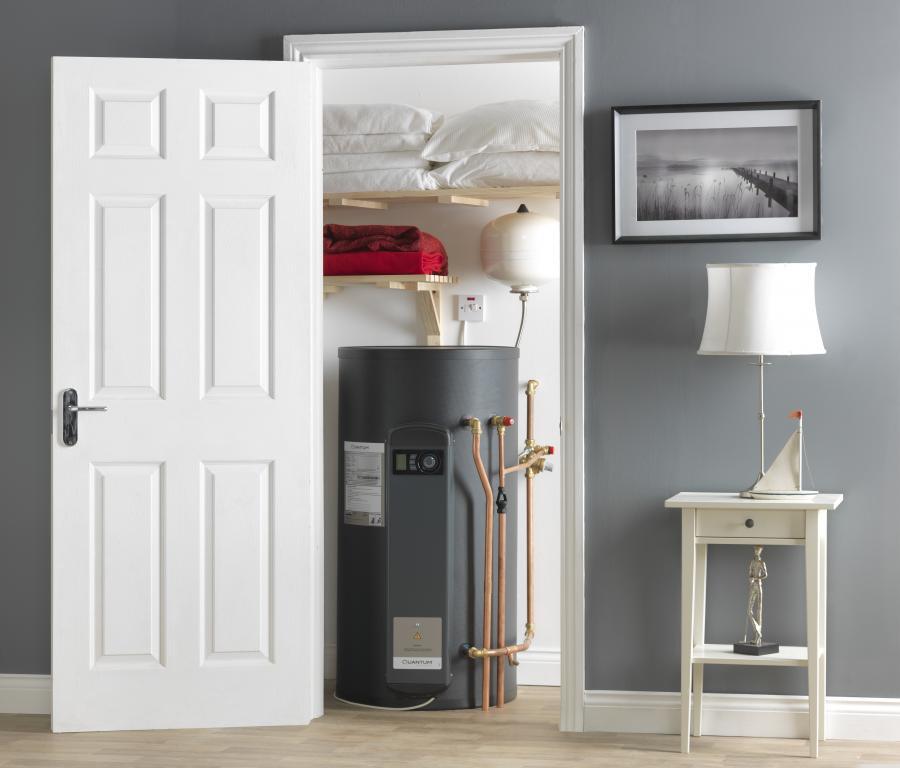

The Quantum water cylinder is the world’s most-advanced direct-electric water cylinder. Designed and developed by Dimplex's own in-house team of experts, the Quantum cylinder is the ideal partner to the Quantum space heater for a complete heating and hot water system, or as a standalone hot water system for the electrically heated home.
- Unvented cylinder give high flow rates for efficient hot water delivery ideal for powerful showers and fast-filling baths.
- Fully compatible with all tap fittings.
- Light and easy to handle for simple installation.
- Surface mounted thermostats and sensors for easy installation and maintenance/replacement.
- Supplied complete with inlet safety group and external expansion vessel.
- All connections accessible from the front.
- Slimline models are ideal for smaller spaces
- Quantum cylinders feature built-in RF connectivity which when connected to a Dimplex Hub (sold separately) can be controlled via the Dimplex Control smartphone app.
Technical specifications
| Brand | Dimplex |
|---|---|
| Capacity | 125 L |
| Cold water inlet location | 22mm stainless steel |
| Control | Electronic thermostatic control and integrated thermal cut out. |
| Dimensions | 580mm x 945 mm |
| Direct or indirect | Direct |
| Electric heater type | Water Cylinders |
| Heat loss in 24 hours (kW/24hr) | 0.95 |
| Heat pump | No |
| Heating source | Direct-electric |
| Height | 945 mm |
| Insulation | 60mm CFC/HCFD free foam |
| IP rating | IPX4 |
| Material | Stainless steel |
| Orientation | Vertical |
| Range | Quantum |
| Reheat time (mins) | 122 |
| Sensor | Surface mounted |
| Type | Unvented Water cylinder |
| Vented or unvented | Unvented |
| Warranty | 25 Years |
| Width | 580 mm |
