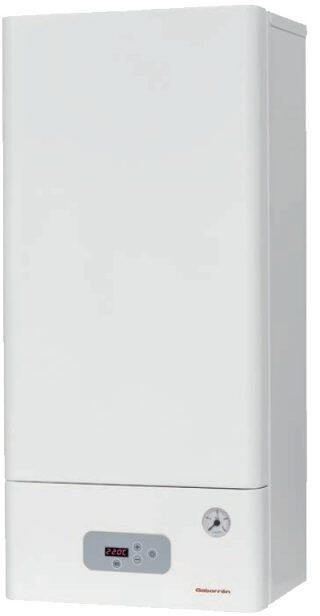

Elnur Connected MAS15 3-15kW Mattira Electric Central Heating Boiler (Heating Only)
Product overview
| Barcode | 8432336807206 |
|---|---|
| Weight | 30.00 Kg |
Mattira System Digital Modulating, Heating Only Electric Boiler. Also compatible with the Elnur Connected Range.
| Selectable Output kW | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kcal/h | 2580 | 3440 | 4300 | 5160 | 6020 | 6880 | 7740 | 8600 | 9460 | 10320 | 11180 | 12900 |
| Current 3 x 400 V+N~ A | 13.0 | 8.7 | 13.0 | 8.7 | 13.0 | 13.0 | 13.0 | 21.7 | 21.7 | 21.7 | 21.7 | 21.7 |
| *Current 230 V~ A | 13.0 | 17.4 | 21.7 | 26.1 | 30.4 | 34.8 | 39.1 | 43.5 | 47.8 | 52.2 | Ask | Ask |
Wi-Fi Compatability
Please note: In order to use this Electric Radiator with Wi-Fi you must have the Elnur Connected Gateway Hub (one required per system).
- Wall mounted heating boiler made of insulated steel.
- Modulating electronic control of the heater by SEM system (Smart Electronic Modulating System).
- Stainless steel shielded elements INCOLOY 800.
- 6L heating expansion vessel.
- Digital display.
- Hydrometer 0-4bar.
- Circulating pump.
- Auto air vent.
- Silent TRIAC power switches.
- Heating flow detector.
- Heating temperature limiter 100ºC.
- 7 bar heating pressure relief valve.
- Powder coated RAL 9010 steel structure.
- Wall bracket steel template to set up connections easily.
- Compatible with Elnur Wi-Fi Connected range
- Compatible with Underfloor heating
Technical specifications
| Brand | Elnur |
|---|---|
| Child Lock | No |
| Colour | White |
| Depth | 265 mm |
| Dimensions | 350 x 760 x 265 mm |
| Electric Heater Type | Water Heaters |
| Frequency | 50 Hz |
| Height | 760 mm |
| Insulation | Class 1 |
| Portable | No |
| Rooms Up To | N/A m² |
| Thermal Technology | Electric Heating |
| Timer | Yes |
| Wattage | 3-15 W |
| Wi-Fi Compatible | Yes |
| Width | 350 mm |
