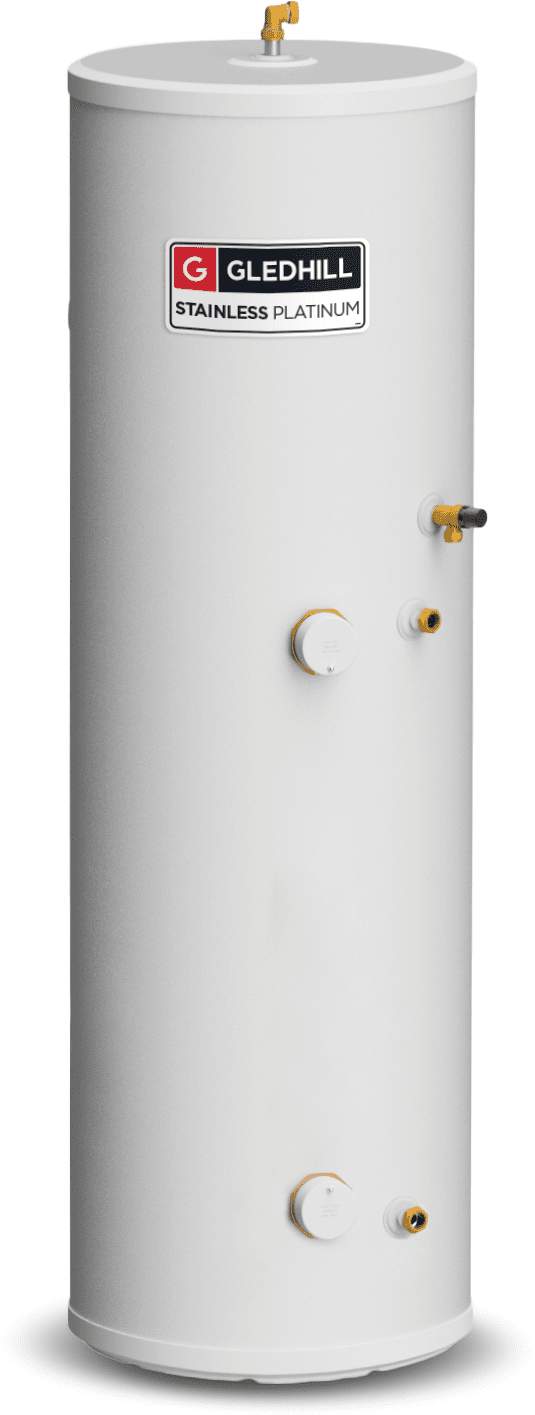

Gledhill Stainless Platinum Unvented 180 Litre Cylinder - Direct

More from Gledhill Stainless Platinum Unvented Cylinders Direct

Gledhill Stainless Platinum Unvented 180 Litre Cylinder - Direct
Gledhill Stainless Platinum Unvented 180 Litre Cylinder - Direct
  • High specification duplex stainless steel
  • 90 degree elbow for quick installation
  • 3kW incoloy 825 immersion heater for use as a primary heat source
  • Suitable for use with economy electricity tariffs to maximise efficiency
  • Lift up temperature and pressure relief valve for easier drain down
  • Corrugated StainlessLite Supercoil for faster recovery times
  • Aligned tapping positions for ease of installation
  • 25 year warranty

View full description

Quick Find: 18231
Part Code: PLTDR180

This product is currently awaiting on stock arrival and due in soon.

This product is currently awaiting on stock arrival and due in soon.

Backorder now to secure your delivery or sign up to be notified when this product is back in stock.

£527.62 ex VAT
£633.14 inc VAT
£633.14 inc VAT
£527.62 ex VAT


Fulfilled by Gledhill

Estimated delivery: 5 working days

Made To Order This is a made to order product and therefore cannot be returned or cancelled

An unvented cylinder for use with electric

Available in 4 different sizes ranging from 120 litres to 210 litres, the largest model is capable of satisfying the hot water demands of a property with 1 bathroom and 2 separate shower rooms, or two bathrooms.

Manufactured from high specification duplex stainless steel, Gledhill’s Stainless Platinum is designed to eliminate the requirement for an external expansion vessel, providing the perfect solution to restricted space.

The direct model comes complete with two immersions, one for peak use and one for off-peak use, allowing the store of water to be heated utilising off-peak electricity, making the unit extremely efficient.

All models have a temperature and pressure relief valve which is factory set at 6 bar and 95 degrees Celsius.

Technical specifications

Capacity168 L
Diameter550 mm
Direct or indirectDirect
Electric heater typeWater Cylinders
Erp ratingB
Heat pumpNo
Heat up time174 min
Height1306 mm
IP ratingIPX4
MaterialStainless steel
Number of immersions2
Secondary returnNo
Vented or unventedUnvented
Weight (Empty)34 Kg
Weight (Full)202 Kg

Product downloads

Gledhill Platinum Borchure

File Size: 910.81 KB

Gledhill Platinum Manual

File Size: 3.04 MB
