Harmoni - SmartFoil 140w/m2 Mat - 2.5m2, 350w

Black Friday Sale
Harmoni - SmartFoil 140w/m2 Mat - 2.5m2, 350w
Harmoni - SmartFoil 140w/m2 Mat - 2.5m2, 350w
Harmoni - SmartFoil 140w/m2 Mat - 2.5m2, 350w
Harmoni - SmartFoil 140w/m2 Mat - 2.5m2, 350w
Harmoni
  • Lifetime warranty
  • Full earth protection
  • Ultra-thin heating cable
  • Twin conductor heating cable
  • Complete earth braiding
  • Suitable for under wood floor surfaces

View full description

Quick Find: 16393
Part Code: HMF140-2.5

Optional related extras for your purchase

6mm XPS Premium Insulation Board 1200x600mm6mm XPS Premium Insulation Board 1200x600mm£4.45
10mm XPS Premium Insulation Board 1200x600mm10mm XPS Premium Insulation Board 1200x600mm£5.83
20mm XPS Premium Insulation Board 1200x600mm20mm XPS Premium Insulation Board 1200x600mm£11.47
Flexible Conduit for Floor Sensing Thermostat Per MetreFlexible Conduit for Floor Sensing Thermostat Per Metre£0.86

Please select any required items before clicking add to basket.

Free Delivery Available
£121.06
£100.88 exc VAT
Was £134.51 save £13.45 (10%)
Offer ends on Monday 30th November at 23:59
RRP: £156.00
  • + £41.39
  • + £72.74
  • + £104.18

Product Qty Total: £0.00
Qty

Day of Choice Delivery available after checkout

Heater Shop

Product overview

Barcode 5060517176396
Weight 1.60 Kg

Please Note : Harmoni Foil Underfloor Heating Mat Products must be used with XPS Insulation Boards.

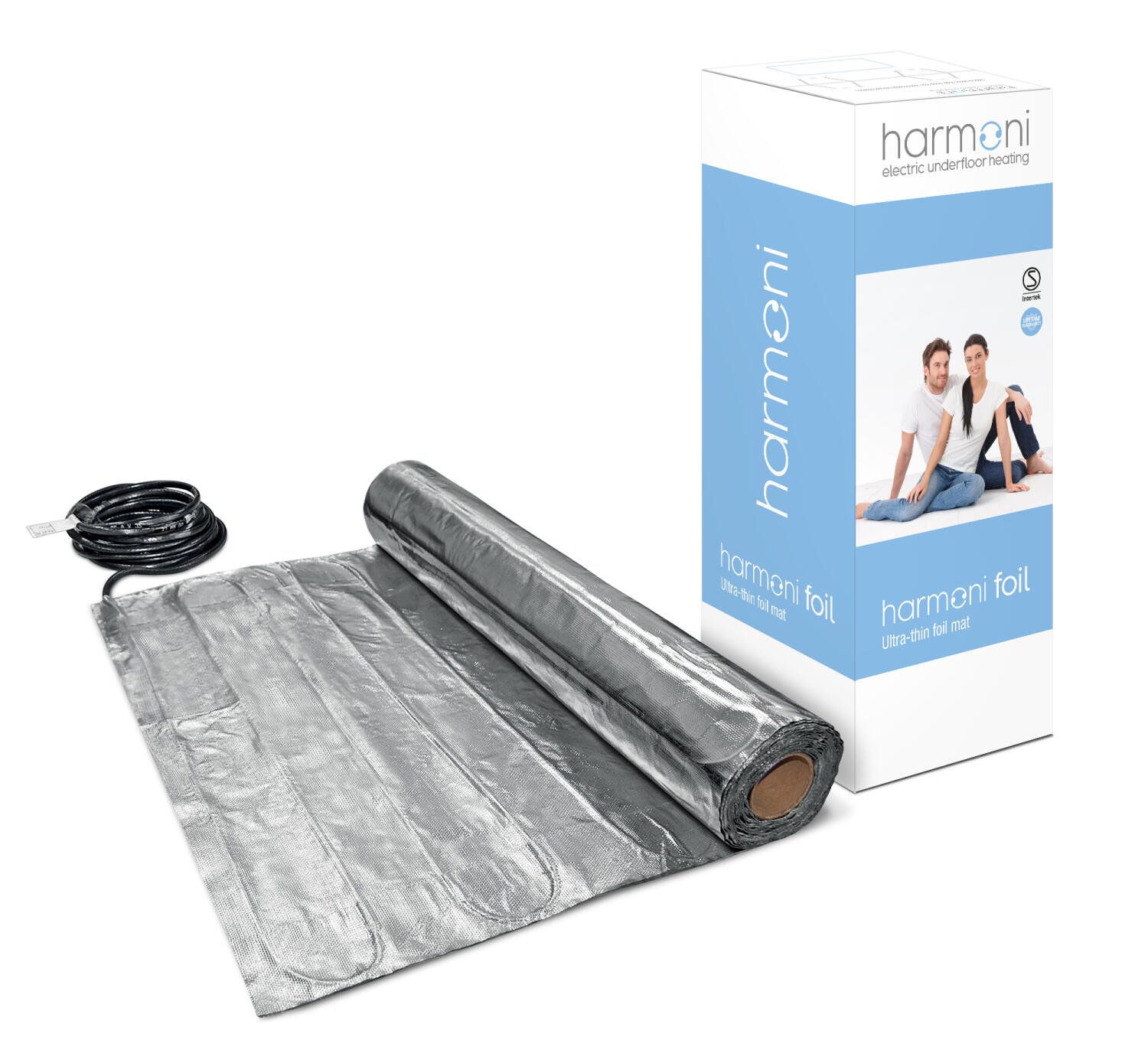

Harmoni Foil is an ultra-thin electric radiant floor heating system primarily for use under laminate, engineered wood and glued hardwood.

Uniform heating is achieved by the specialised materials used, which also eliminates problems due to hotspots or localised heating.

This Harmoni Foil system is made with Fluoropolymer insulated heating cables. These are sandwiched between two layers of specially reinforced aluminium foil. The uniform spacing of the heating elements, further backed by the aluminium foil, ensures even heat distribution. The heating element is connected to a power-supply cable, which exits the laminate mat from one corner. The power lead is a flat thin two core flexible cord, consisting of two insulated conductors with a metal sheath and an outer sheath.

Advantages of using Harmoni Foil heating mats:

  • Ease of installation
  • Uniform heating of your laminate flooring: the specialised materials used eliminates problems due to hotspots or localised heating
  • Independently S Mark approved by Semko: visible proof of the safety of our product

The Harmoni Foil heating mat is designed for installation directly under wood laminate, on top of insulation boards such as the XPS board. The minimum thickness of any covering material must be 5mm in accordance with IEC 60335-2-96-7.12.1g.

Technical specifications

Area2.5 m²
Brandharmoni
Cold lead length3.0 m
Coverage2.5m2
Current1.52 A
FeaturesWood Finished Floors
Lifetime warrantyYes
Mat Length5.0 m
Mat or KitMat Only
Mat Width0.5 m
Resistance @20°C (−5/+10%)151 Ω
Thermostat ChoiceMat Only
Wattage350 W

Product options

Product downloads

Harmoni Foil Manual

File Size: 2.64 MB
