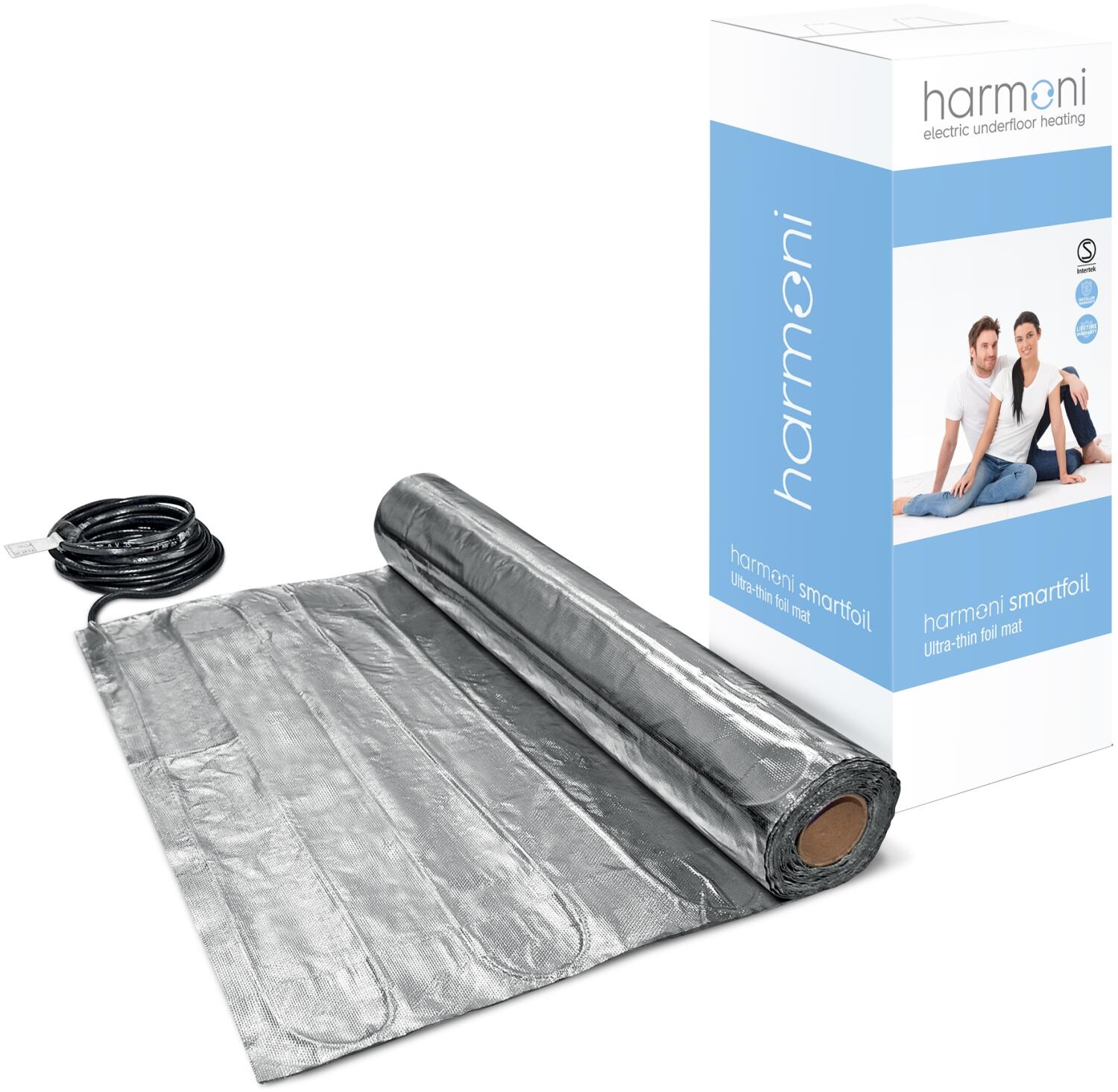

Harmoni - SmartFoil 140w/m² Mat - 4.0m², 560w

View all Foil Underfloor Heating Mat 140W

Harmoni - SmartFoil 140w/m² Mat - 4.0m², 560w
Harmoni - SmartFoil 140w/m² Mat - 4.0m², 560wHarmoni - SmartFoil 140w/m² Mat - 4.0m², 560w
Harmoni - SmartFoil 140w/m² Mat - 4.0m², 560w
  • Lifetime warranty
  • Full earth protection
  • Ultra-thin heating cable
  • Twin conductor heating cable
  • Complete earth braiding
  • Suitable for under wood floor surfaces

View full description

Quick Find: 16390
Part Code: HMF140-4.0

Weight: 2.60 Kg

This product is currently awaiting on stock arrival and due in soon.

This product is currently awaiting on stock arrival and due in soon.

Backorder now to secure your delivery or sign up to be notified when this product is back in stock.


Free Delivery Available*
£63.53 ex VAT
£76.24 inc VAT
£76.24 inc VAT
£63.53 ex VAT
Stock Available: 48 Units

Selected Total: £0.00

    • + £45.98
    • + £80.83
    • + £69.95
    • + £70.96
    • + £46.50
    • + £49.96
    • + £99.98
    • + £92.99
    • + £92.99
    • None
    • + £69.11
    • + £73.72
    • + £39.00
    • None
    • + £99.49
    • + £109.99
    • + £109.99
    • + £104.99
    • + £104.99
    • None

    Qty

    Estimated delivery: 1 working days

    Day of Choice Delivery Available

    Made To Order This is a made to order product and therefore cannot be returned or cancelled

    Please Note : Harmoni Foil Underfloor Heating Mat Products must be used with XPS Insulation Boards.

    Harmoni Foil is an ultra-thin electric radiant floor heating system primarily for use under laminate, engineered wood and glued hardwood.

    Uniform heating is achieved by the specialised materials used, which also eliminates problems due to hotspots or localised heating.

    This Harmoni Foil system is made with Fluoropolymer insulated heating cables. These are sandwiched between two layers of specially reinforced aluminium foil. The uniform spacing of the heating elements, further backed by the aluminium foil, ensures even heat distribution. The heating element is connected to a power-supply cable, which exits the laminate mat from one corner. The power lead is a flat thin two core flexible cord, consisting of two insulated conductors with a metal sheath and an outer sheath.

    Advantages of using Harmoni Foil heating mats:

    • Ease of installation
    • Uniform heating of your laminate flooring: the specialised materials used eliminates problems due to hotspots or localised heating
    • Independently S Mark approved by Semko: visible proof of the safety of our product

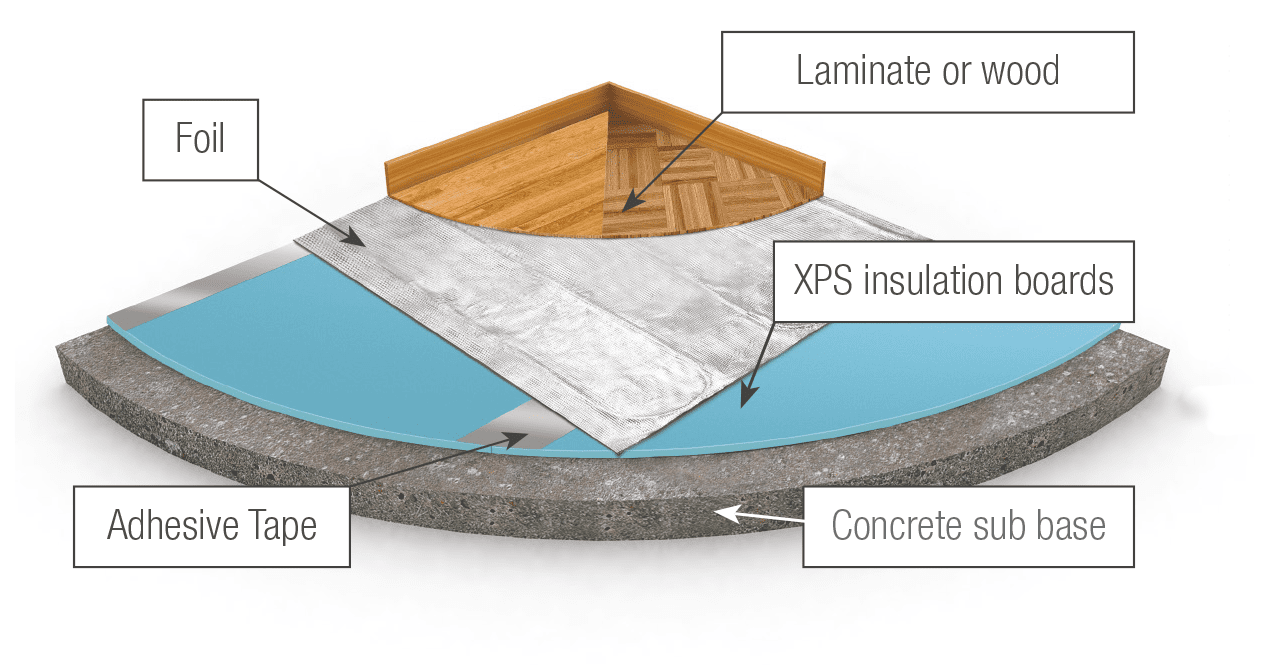

    The Harmoni Foil heating mat is designed for installation directly under wood laminate, on top of insulation boards such as the XPS board. The minimum thickness of any covering material must be 5mm in accordance with IEC 60335-2-96-7.12.1g.

    Technical specifications

    Area4 m²
    BrandHarmoni
    Cold lead length3.0 m
    Coverage4.0m²
    Current2.43 A
    FeaturesWooden Floor
    Lifetime warrantyYes
    Mat length8 m
    Mat or kitMat Only
    Mat width0.5 m
    Power140 W/m²
    Resistance @20°C (−5/+10%)95 Ω
    Thermostat choiceMat Only
    Wattage560 W

    Product options

    Product downloads

    Harmoni Foil Manual

    File Size: 2.64 MB
