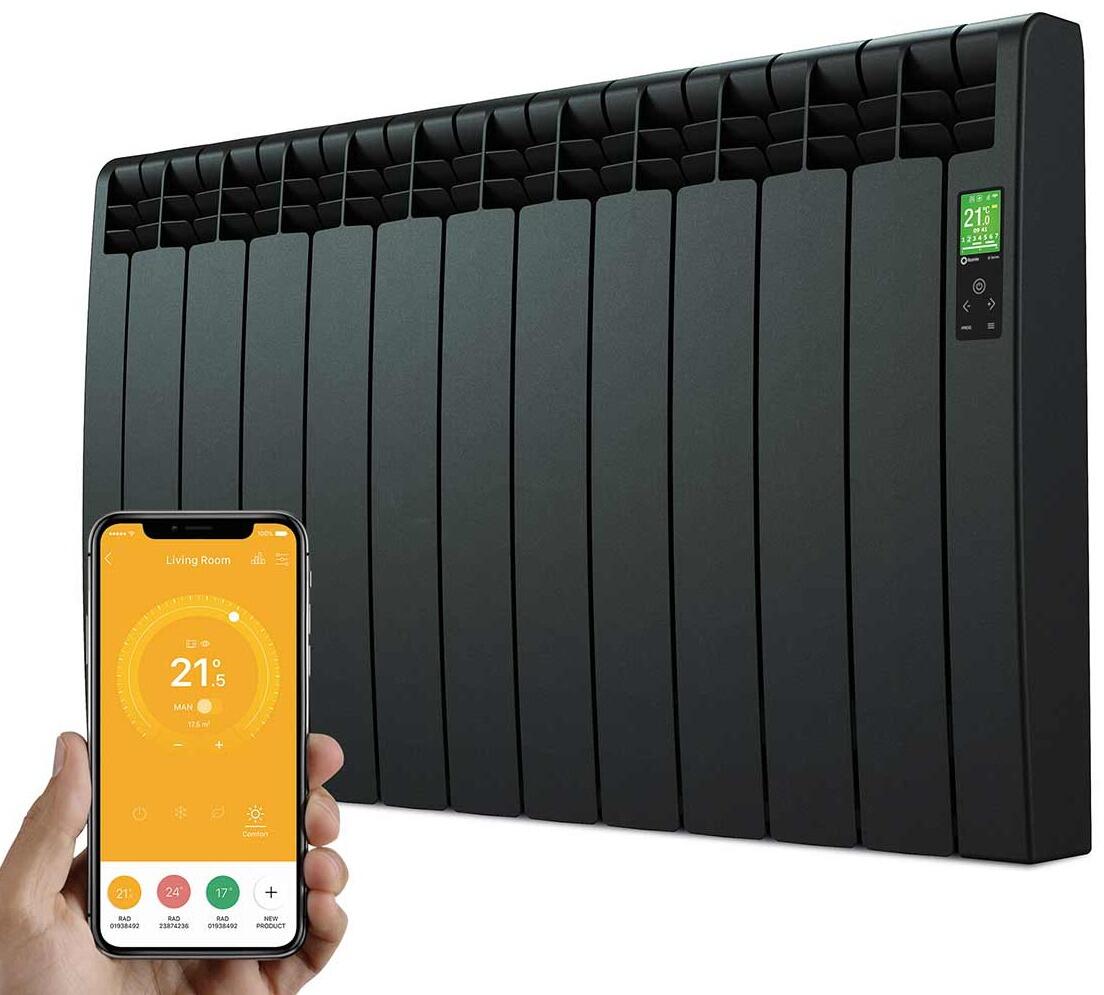

Rointe DIB1210RAD - D Series - Electric Radiator, Graphite, 1210W
- 1210W - 992mm x 585mm x 97mm
- 11 elements
- Heats up to 12m2
- 10 year body warranty
- 2 year electrical warranty
Quick Find: 8772
Part Code: DIB1210RAD
All recommended "heats up to" are for example only and are based on current building regulations any deviation within in this build example may significantly affect this recommendation. We always recommend contacting us for a free heat loss calculation.
|Range||Rointe D Series|
|Model||1210 Watts, 11 Elements|
As the experts in thermal heating, Rointe horizontal designer radiators introduce the new range of next generation home domestic heating: D Series.
Enjoy a mild and pleasant heat, flooding every room in your home. A healthy heat, which keeps the humidity relative without drying out the environment using the natural convection of the specially designed fins.
With Rointe horizontal designer radiators you can enjoy the warmest winter in your home with all the advantages offered by a low energy system that you can control from anywhere at any time. Sounds great right?
The new Rointe DIB1210RAD heating system will revolutionise the way in which up to now we understand the world of heating.
With a sleek new design available in two colours and latest generation electronics with built-in Wi-Fi, the Delta Ultimate has been designed to bring you the comfort your family needs along with the most versatile control.
Savings with maximum efficiency
Delta Ultimate is not only a home heating automation system which provides maximum comfort to your home, the Delta Ultimate goes much further.
The most advanced heating system ever created by Rointe incorporates Fuzzy Logic Energy Control, the new low power technology developed by Rointe. Fuzzy Logic Energy Control has evolved from its predecessor Optimizer Energy Plus - with a faster and more effective start-up period allowing the initial heating phase to be stabilized, thus reducing the equivalent ratio of consumption to 38%.
But what does that mean? We know concepts such as 'equivalent consumption coefficient' sound complicated, so we will make them easy to understand.
During tests performed in independent laboratories under specified parameters, a Rointe horizontal designer radiators with Optimizer Energy plus patented technology heating a 12m2 room to a set temperature of 21° for a period of 24 hours only uses power for less than half of the time, in fact only 40% of the time. So, it only uses 40% of the nominal power that it has available.
In other words, to keep the room at 21° for 24 hours the radiator only has to work for 40% of the time, which we define as equivalent consumption coefficient.
According to tests conducted by Rointe on the Delta Ultimate range incorporating the Fuzzy Logic Energy Control, the consumption is reduced by a further 6% from the Optimizer Energy Plus - taking the equivalent consumption coefficient to 38%.
The range of Delta Ultimate radiators have been designed down to the smallest detail. With an innovative curved design and slim-line aluminium side locks, the back lit touch control panel, the new advanced Fuzzy Logic Energy Control and E-Life Technology technologies - all make the Delta Ultimate radiator the flagship of the brand.
- Low Consumption - Thanks to its Fuzzy Logic Energy Control technology, the average power consumed by the Delta Ultimate radiators accounts for only 38% of its rated power
- Irregular product with side locks - New curved design with slim line aluminium side locks on both sides to give the product a compact finish and a consistent look
- Optimised design for maximum dissipation - Maximum performance thanks to the new design of the bar, fins and the 98 mm depth of each element, with room for 50% more thermal fluid than other products on the market
- SMD electronics and advanced technology - Multi-layer surface mounted electronics with dual micro-controllers Rointe XLP8 and XLP16 Extreme Low Power, long lasting lithium battery and Triac as cutting element
- Optimal trade off between w/item - 110 watts per element provide balanced heat transfer compared to other radiators on the market that consume between 125 and 160 watts per element, making them less efficient
- E-Life technology - The E-Life Technology allows the heating to be managed from the Internet in a simple manner and with individual control for each radiator
- TFT screen - 1.77 inch TFT Screen, the next generation, high contrast screen offers optimal viewing from any angle
- The first radiator in the world with Wi-Fi Inside - The first Wi-Fi inside radiator in the world with Wi-Fi module to control its functions from a smart phone or tablet without intermediate terminals or other external elements
- Advanced control by touch panel - Total control from the radiator itself using the built in back lit control panel
- Available in two colours - Product range finished in a sleek graphite and white for seamless integration into any environment
- Quality Assurance - Total security with a 10 year warranty on the aluminium, and 2 years for electrical components
|Dimensions||992 x 585 x 97 mm|
|Effective Power||460 W|
|Effective Power Ratio||38 %|
|Heats Up To||12 m²|
|Lot 20 Compliant||Yes|
|No. of Fins||11|
|Product Type||Electric Radiator|
|Thermal Technology||Oil Filled|
|Warranty (Body)||20 Years|
|Warranty (Electrical Components)||3 Years|
16 May 2018 12:55
Very good product easy to fit looks good when in place and worth every penny
8 March 2016 12:01
The product is fantastic and has exceeded my expectations
The guys at heater shop were very informative and helped me find the right solution for my heating needs.
Thank you Edward for your fantastic comments regarding our service.
It is very much appreciated.
Customer Service Manager
Due to popular demand we have compiled a summary of all Rointe Kyros Electric radiator sizes for quick comparison. These include the standard Rointe Kyros electric radiators and the low profile Roi...
Choosing which electric radiator is right for your project can be a difficult enough decision - as there are often many things to consider. Oil/Gel filled radiators. Dry radiators. ...
Frequently asked questions
Purchasing a Rointe Kyros ACMI120 remote control simply makes sense. The Bi-directional wireless connection enables programming, that once sent to the product, can be received and copied into anoth...
The Rointe ‘K series’ and ‘Kyros series’ do not come with remotes but they can be purchased alongside the electric radiators from the accessories tab on the left hand bar. ...
Yes, our Rointe radiators are fully programmable 7 days a week/ 24 hours from the radiator control panel. The Rointe Kyros ACMI120 Bi-directional wireless remote can be purchased to control the ...
All Rointe Electric Radiators include a set of brackets to attach it securely to the wall, so there is no need to purchase this separately.
Rointe Kyros, K series and the Delta series electric radiators all have child locks on the settings panel to stop little hands from tinkering with your heating. Alongside manually using the contro...
The radiator does not require any type of maintenance. We recommend that all parts of the radiator are kept clean (behind, underneath, upper fins etc.). Do not use any abrasive product on the alumi...
Yes, however the Rointe Delta is also WiFi compatible - meaning you can with easily connect your smart phone or tablet to the Delta radiators and towel rails to program via the free Rointe Connect ...
Yes, The new Rointe Delta Ultimate inside WiFi module is built into all of the new Delta Ultimate range, allowing control of all functions remotely with e-life technology through the Rointe Connect...
You can lock the control panel from the radiator, the Rointe Connect App or the AIR Control remote (optional). Here we show how to do it from the control panel of the product itself. By pressing...
The Rointe open window function is invoked when the room temperature sensor detects a drop of 4ªC from the user-assigned temperature over a 30 minute period. Under these circumstances, the fun...
The Rointe Delta Ultimate and the Rointe Kyros electric radiators work by means of natural air convection. In order to achieve optimal functioning and an even distribution of heat, the lower part o...
The flex/power lead is on the right-hand side for the Rointe K Series, Rointe Kyros and the newer Rointe Delta Ultimate (D Series) ranges of electric wall mounted radiators.
Rointe radiators are designed for household or residential use. We advise to have the radiator installed by an competent person or electrician where necessary making sure the radiator is properl...
Electric heaters do not burn fuel internally to generate heat, so there are no associated safety risks such as carbon monoxide poisoning or explosions. As there are no radiators to leak or burst...
The Rointe conservatory electric heater is the best heater for a conservatory as heating a conservatory in the winter can be an issue. Connecting a conservatory radiator to central heating is never...
