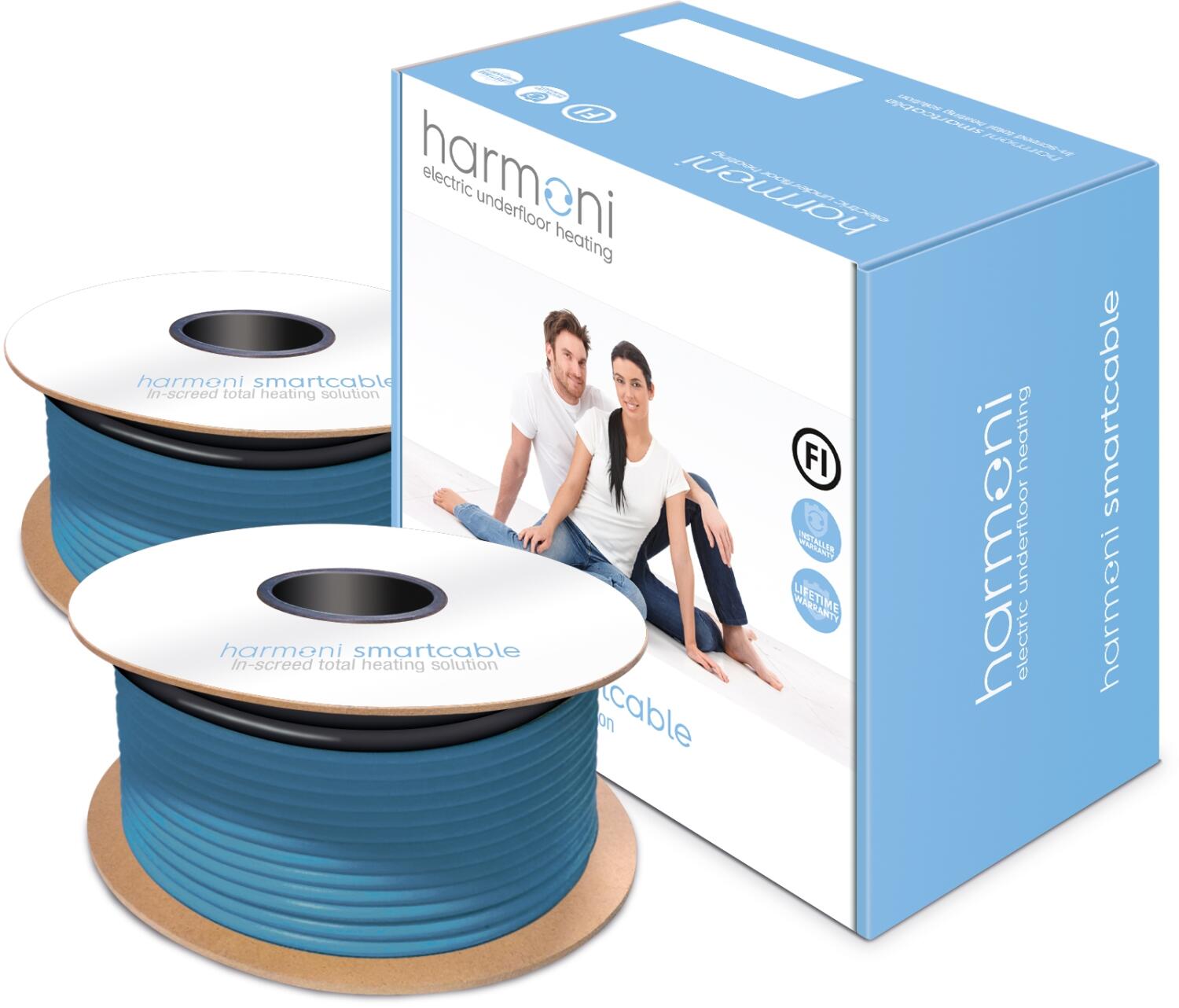

Harmoni In-Screed SmartCable-20 395m 8200w
The SmartCable underfloor heating product offers a flexible solution for most new build applications where a total heating solution is required. The flexibility of the cable installation allows variable power outputs to be installed with a maximum of 230W/m2.
This system will provide a total heating solution in most installation scenarios including conservatories and sun rooms.
Technical specifications
Area | 34.5-44 m² |
---|---|
Brand | Harmoni |
Cable length | 400 m |
Cable thickness | 7 mm |
Cables or kits | Cable Only |
Cold tail | 4m |
Conductor insulation | PEX |
Coverage | 34.5-44m² |
Features | In Screed Cable |
Length | 400 m |
Lifetime warranty | Yes |
Model | Harmoni Cable-20 400m |
Output per m² | 20W/m at 230 V |
Screen | 16 × 0.3mm Cu |
Tensile strength | 120Nm |
Thermostat choice | Cable Only |
Wattage | 7920 W |
