Dimplex DTD2R 05 Alta Wi-Fi Low Profile Panel Heater 500W

More from Dimplex DTD Alta Conservatory Panel Heaters

Dimplex DTD2R 05 Alta Wi-Fi Low Profile Panel Heater 500W
Dimplex DTD2R 05 Alta Wi-Fi Low Profile Panel Heater 500W
  • Modern panel design
  • Wi-Fi connected product
  • Customisable heating time & temperature settings
  • Smartphone controllable via the CAPA Connect APP
  • 20cm height for use on low profile walls

View full description

Quick Find: 23030
Part Code: DTD2R 05

Weight: 3.10 Kg

This product is currently awaiting on stock arrival and due in soon.

This product is currently awaiting on stock arrival and due in soon.

Backorder now to secure your delivery or sign up to be notified when this product is back in stock.

Optional related extras for your purchase

Dimplex Alta Clip on Glass - Anthracite to fit DTD2R05 500WDimplex Alta Clip on Glass - Anthracite to fit DTD2R05 500W£45.70£54.84
Dimplex Alta Clip on Glass - White to fit DTD2R05 500WDimplex Alta Clip on Glass - White to fit DTD2R05 500W£45.70£54.84

Please select any required items before clicking "Add to Basket".

Free Delivery Available*
£117.04 ex VAT
£140.45 inc VAT
£140.45 inc VAT
£117.04 ex VAT
Stock Available: 7 Units


Estimated delivery: 1 working days

Day of Choice Delivery Available

Made To Order This is a made to order product and therefore cannot be returned or cancelled

The low profile DTD2R 05 Alta panel heater features built-in Wi-Fi with direct connection to your network, allowing the panel to be controlled remotely via our Capa Connect APP. This range also includes intuitive user controls and 7-day timer profiles.

The Dimplex DTD 'Alta' Panels offer the perfect choice for users who want to control the comfort in their space remotely, featuring built-in Wi-Fi and compatible with our Capa Connect APP*, these smart panels can be connected to your internet and controlled completely via your Smartphone or Tablet without the need for a separate hub or any add-on accessories**. These panels also offer highly intuitive user controls for easy, direct on-board basic operation of the heater. Over-the-air updates ensure your Alta product always has the latest software**.

This aesthetically pleasing, Scandinavian designed and inspired product is ultra slimline at a total wall projection of 9cm and features sleek rounded edging, making the Alta less intrusive and allowing it to fit seamlessly into any setting.

The top facing grille ensures an efficient, natural heat delivery and maximises the rooms comfort levels, with a digitally controlled and accurate electronic thermostat to help regulate your perfect desired space temperature. These Lot20 compliant panels include a 7-day programmable user timer, with 7 time periods a day and come with 5 built in pre-set modes, Normal (Timer), Comfort, Eco, Away and Off, giving the user a greater depth of flexibility. The Alta series come with a 2-year guarantee, with the option to add a further 3-years with online registration***.

The Capa Connect APP allows you to effortlessly control multiple heating products using a single, user-friendly interface. Share access with family members and manage user permissions for ultimate control of your home's heating environment. Keep your devices secure with lock/unlock controls to prevent unauthorised adjustments to temperature settings. Design personalised heating schedules tailored to your lifestyle, ensuring maximum comfort and energy savings. Need a sudden change? The manual override feature lets you quickly adapt to unexpected departures or early returns home. Organise your devices into sites and zones like "bedrooms," streamlining management and enabling unique schedules for different areas. Capa Connect automatically keeps your devices up to date via Wi-Fi connectivity, ensuring consistent, optimal performance for your home heating system. Experience the future of home heating control with Capa Connect.

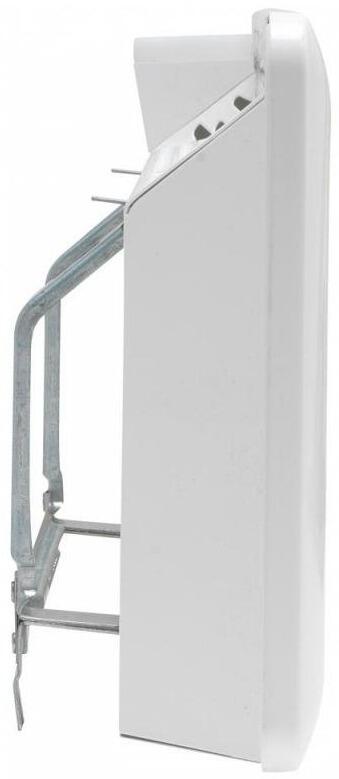

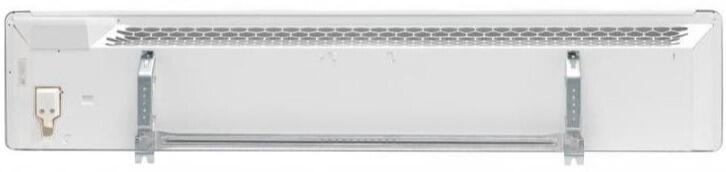

The DTD Alta is easily installed with an H-frame wall mounting bracket, plastic tilt strap and simple instruction manual. It comes with a 1.3m fitted cable and 2-core for fused spur installation.

*Capa Connect available for free on Apple and Android stores.

**A strong Wi-Fi signal is required in the panel’s installation area, please assess the signal thoroughly before installing the product.

***Register your products at -  https://www.dimplex.co.uk/register

Technical specifications

Cable length1.3 m
Child lockYes
ColourWhite (RAL 9016)
Depth90 mm
Dimensions725 x 200 x 90 mm
Electric heater typePanel Heaters
Electric Supply~230-240V
Frost protectionYes
Heats up to3 m²
Height200 mm
IP ratingIP24
Lot 20 compliantYes
RangeDTD Alta Low Profile
Supplied with plugNo
TypeElectric Radiator
Warranty2 Years
Wattage500 W
Weight3.1 Kg
Width725 mm
WiFi compatibleYes
